M/s Asli Pari is a textile processing unit situated in Federeal B. Industrial Area, Karachi, Pakistan.
The company produces international standard sewing threads (cotton and polyester) for local market.
In November 2011, Mr. Muhammad Irfan, Director Asli Pari, decided to avail services offered by ESPIREenergy (see description on the left).
Through Energy Audit 15 energy conservation measures were identified with an annual energy saving potential of 3.8 Million PKR.
An Energy Information Software was installed to enable the company to continuously monitor its energy consumption and costs.
An Energy Team was formed and trained and an Energy Management System developed to enable the company to reduce its energy consumption further without external support.
For 6 months the consultant assigned by ESPIREenergy monitored and supported implementation, documented the progress and quantified the realized cost savings.
Asli Pari implemented 6 improvement measures within 6 months which resulted in annual energy savings of 2.75 Million PKR with an investment of only 0.58 Million PKR and a 2.5 months payback time.
To further improve the energy efficiency Asli Pari has developed an Energy Policy and developed an energy team which is monitoring energy consumption and implementing energy saving measures without external support.
ENERGY SAVING MEASURES
[implemented within first 6 months] |
ENERGY SAVING
[M-PKR/year] |
INVESTMENT
[M-PKR] |
Insulation of steam lines |
0.333 |
0.200 |

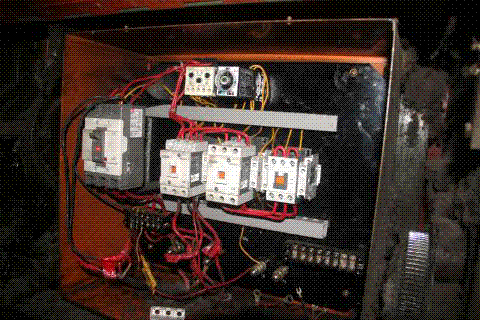

Installation of star delta drives on ring spinning |
0.446 |
0.310 |
Boiler Tuning to increase Combustion Efficiency |
1.823 |
0.060 |
Repairing of ineffective insulation |
0.044 |
0.0 |
Boiler surface insulation |
0.030 |
0.006 |
Repairing of steam leakages |
0.071 |
0.0 |
TOTAL |
2.747 |
0.576 |
|
